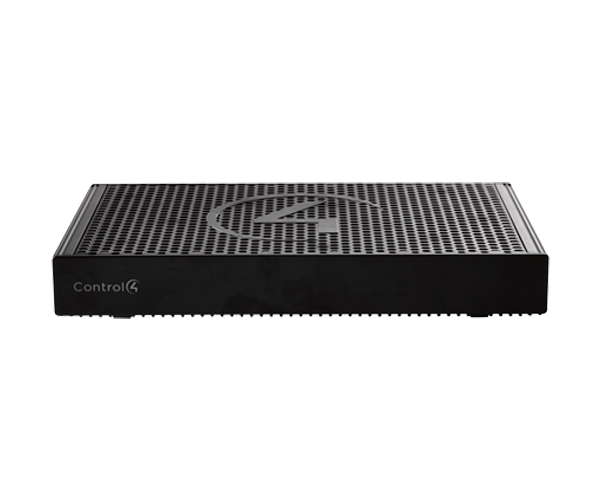

Entertainment and Automation Controller,
1 Zone C4-EA1
Entertainment and Automation Controller,
1 Zone, V2 C4-EA1-V2
Entertainment and Automation Controller,
1 Zone, V2, Int'l C4-EA1-V2-1
Embedded services
Control4 app Supports up to 50 devices
Music services Pandora®, Napster®, Spotify, TuneIn, TIDAL, Deezer, SiriusXM,
SOUNDMACHINE, and iHeartRadio
ShairBridge Up to 20 instances of the driver in the project
1 concurrent stream
Inputs/Outputs
Video out 1 video out—HDMI
Video HDMI 1.4 output; HD 1080p, 50-60 Hz
Audio out 1 audio out—HDMI
Audio playback formats AAC, AIFF, ALAC, FLAC, M4A, MP2, MP3, MP4/M4A, Ogg
Vorbis, PCM, WAV, WMA
High-resolution audio playback Up to 192 kHz / 24 bit
Network
Ethernet 10/100/1000BaseT compatible (required for controller setup)
WiFi Wireless-N (2.4 GHz, 802.11n/g/b)
WiFi security WPA/WPA2
WiFi antenna External reverse SMA connector
ZigBee Pro 802.15.4
ZigBee antenna External reverse SMA connector
USB port 1 USB 2.0 port—500mA
Control
IR out 4 IR out—5V 27mA max output, 1 IR blaster—front
IR capture 1 IR receiver—front; 20-60 kHz
serial out 2 serial out shared with IR out 1 and 2
Dimensions (H × W × D) 29 mm × 191 mm × 127 mm
Weight 0.54 kg
