| AC Input Voltage |
115VAC or 240VAC (Switchable), 230W |
| Power Switch |
Front Panel On/Off with LED |
| Mounting |
Rack mount or free standing |
| Dimensions (HxWxD) |
5.24in(133mm) x 17.0in(432mm) x 14.75in(375mm) |
| Operating Temperature |
+32°F to +122°F (0°C to +50°C) |
| Operating Humidity |
5% to 95% Non-condensing |
| Weight |
23.4lbs (10.6kg) |
| IR Input |
One, 3.5mm, for IR control |
| IR Output |
One, 3.5mm, for IR Passthrough |
| RS232 Port |
One, Bidirectional control |
| Trigger Output |
One, 12VDC, to trigger another CP-1650 |
| Trigger Input |
One, 3-30VDC, for power control |

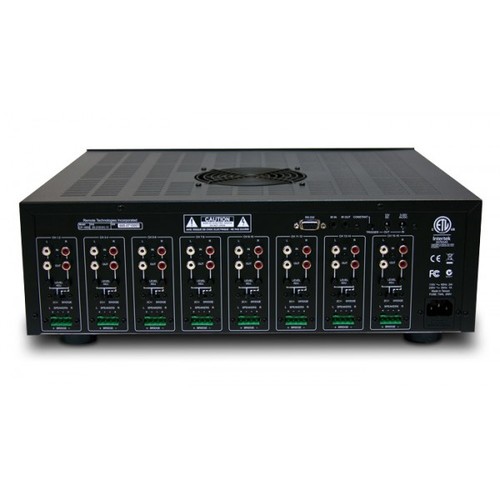

| Speaker Outputs |
Eight stereo outputs, two channels each, phoenix connectors |
| Audio Inputs |
Eight, RCA jacks x 16 |
| Audio Loop Outputs |
Eight, RCA jacks x 16 |
| |
|
| Audio - 2 Channel Mode |
|
| Rated Power/Channel |
30 Watts, 20Hz to 20KHz
(RMS, 2 channels driven into 8 ohms) |
| Power/Channel |
50 Watts, 20Hz to 20KHz
(RMS, 2 channels driven into 4 ohms) |
| IHF Dynamic Power |
40 Watts/1KHz at 8 ohm load
60 Watts/1KHz at 4 ohm load |
| Total Harmonic Distortion |
@20W/8ohm, 0.5% |
| |
|
| Audio - Bridged Mode |
|
| Rated Power/Channel |
100 Watts, 20Hz to 20KHz
(RMS, 2 channels driven into 8 ohms) |
| Total Harmonic Distortion |
(100W/8 ohms), 0.5% |
| Total Harmonic Distortion |
(1W/8 ohms), 0.05% |
| |
|
| Audio - General |
|
| Total Harmonic Distortion |
30W/8 ohms & 50W/4 ohms, 0.5% |
| Total Harmonic Distortion |
@1W/8ohm <.05% |
| S/N @ Rated Power, IEC A-wtd, Source Input shorted |
100dB |
| Frequency Response |
20Hz to 20KHz @1W/8ohm, 1.5+/-.5dB |
| Input Sensitivity |
1W @ 8 ohms, 170mV/900mV |
| Input Impedance |
22KOhms |
| Channel Separation |
@ Rated Power/1KHz, 60dB |
| Crosstalk Between Sources |
@ Rated Power/1KHz, 100dB |
| Crosstalk Between Zones |
@ Rated Power/1KHz, 80dB |
