| AC Input Voltage |
115VAC or 240VAC (Switchable), 230W |
| Power Switch |
Front Panel On/Off with LED |
| Mounting |
Rack mount or free standing |
| Dimensions (HxWxD) |
2.1in(53mm)x16.9in(430mm)x13.3in(340mm) |
| Operating Temperature |
+32°F to +122°F (0°C to +50°C) |
| Operating Humidity |
5% to 95% Non-condensing |
| Weight |
14lbs (6.4kg) |

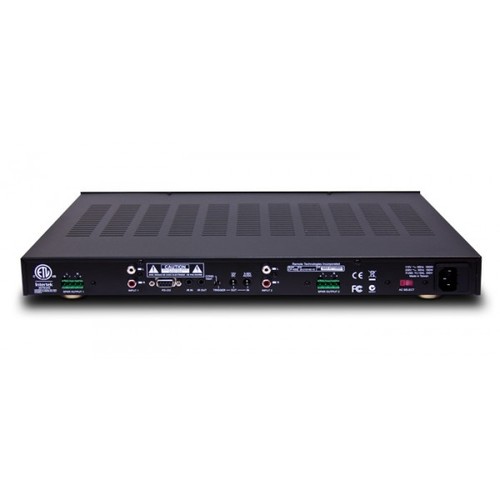

| IR Input |
One, 3.5mm, for IR control |
| IR Output |
One, 3.5mm, for IR Passthrough |
| RS232 Port |
One, Bidirectional control |
| Trigger Output |
One, 12VDC, to trigger another CP-1650 |
| Trigger Input |
One, 3-30VDC, for power control |
| Speaker Outputs |
Two stereo outputs, two channels each, phoenix connectors |
| Audio Inputs |
Two stereo, RCA jacks (4) |
| Rated Power/Channel |
50 Watts, 20Hz to 20KHz (RMS, 2 chan driven 8ohms) |
| Rated Power/Channel |
70 Watts 20Hz to 20KHz (RMS, 2 chan driven 4ohms) |
| IHF Dynamic Power |
80 Watts/1KHz at 8 ohm load
120 Watts/1KHz at 4 ohm load |
| Total Harmonic Distortion |
@50W/8 ohms & 70W/4 ohms, 0.5% |
| Total Harmonic Distortion |
@1W/8ohm <.05% |
| S/N @ Rated Power, IEC A-wtd, Source Input Shorted |
100dB |
| Frequency Response |
20Hz to 20KHz @1W/8ohm, 0dB +/- 0.5dB |
| Input Sensitivity |
1W/8ohms, 140mV/1V |
| Input Impedance |
22KOhms |
| Channel Separation |
@ Rated Power/1KHz, 85dB |
| Crosstalk Between Sources |
@ Rated Power/1KHz, 100dB |
| Crosstalk Between Zones |
@ Rated Power/1KHz, 95dB |
